Wi-Fi Calling Issues

Phase 1: Customer-Side Verification

Before investigating system-level configurations, rule out common device and environmental factors:

1. Device Compatibility: Confirm that the customer's device supports Wi-Fi Calling and that the carrier has enabled it for that specific model.
2. Enable WFC on Device: Ensure the customer has toggled "Wi-Fi Calling" to ON in their device’s cellular settings.
3. Wi-Fi Connection: Verify the customer is connected to a stable, high-speed Wi-Fi network. Low bandwidth or restricted public Wi-Fi (like those in hotels or airports) often block the ports required for WFC.
4. E911 Address: Wi-Fi Calling typically requires a valid E911 address (Emergency 911 location) to be registered on the account. If this is missing or outdated, the network may block WFC to ensure emergency services can locate the caller.

Phase 2: Telgoo5 System Diagnostics

If the device settings are correct, use Telgoo5 to verify the account and provisioning:

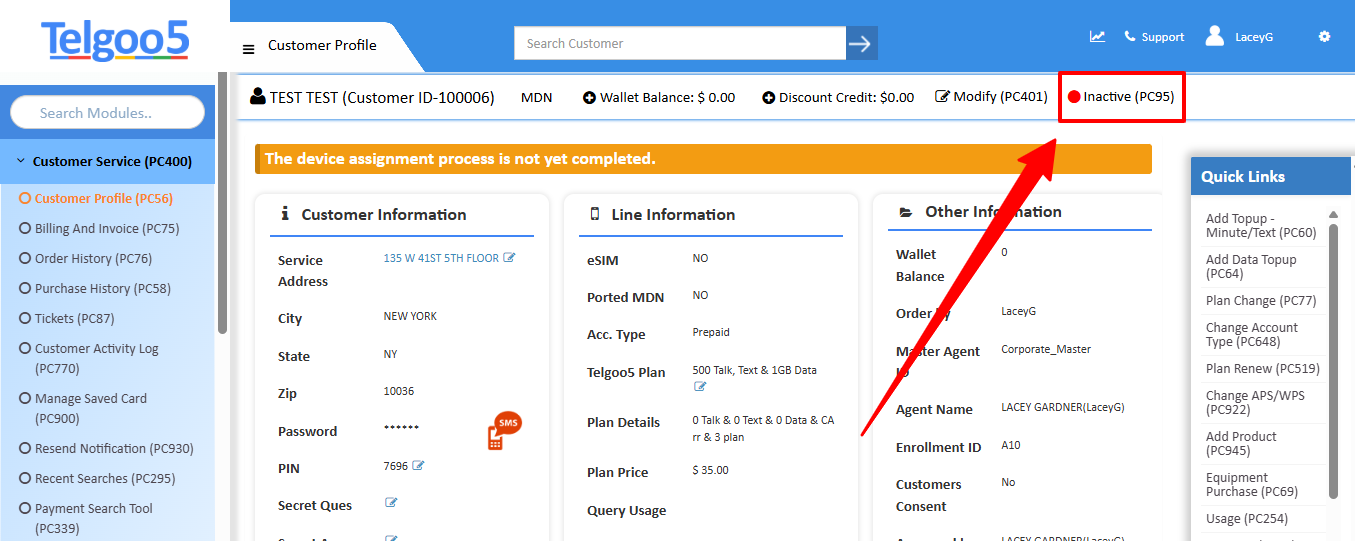

1. Check Account Status: Verify the account is Active (PC95).

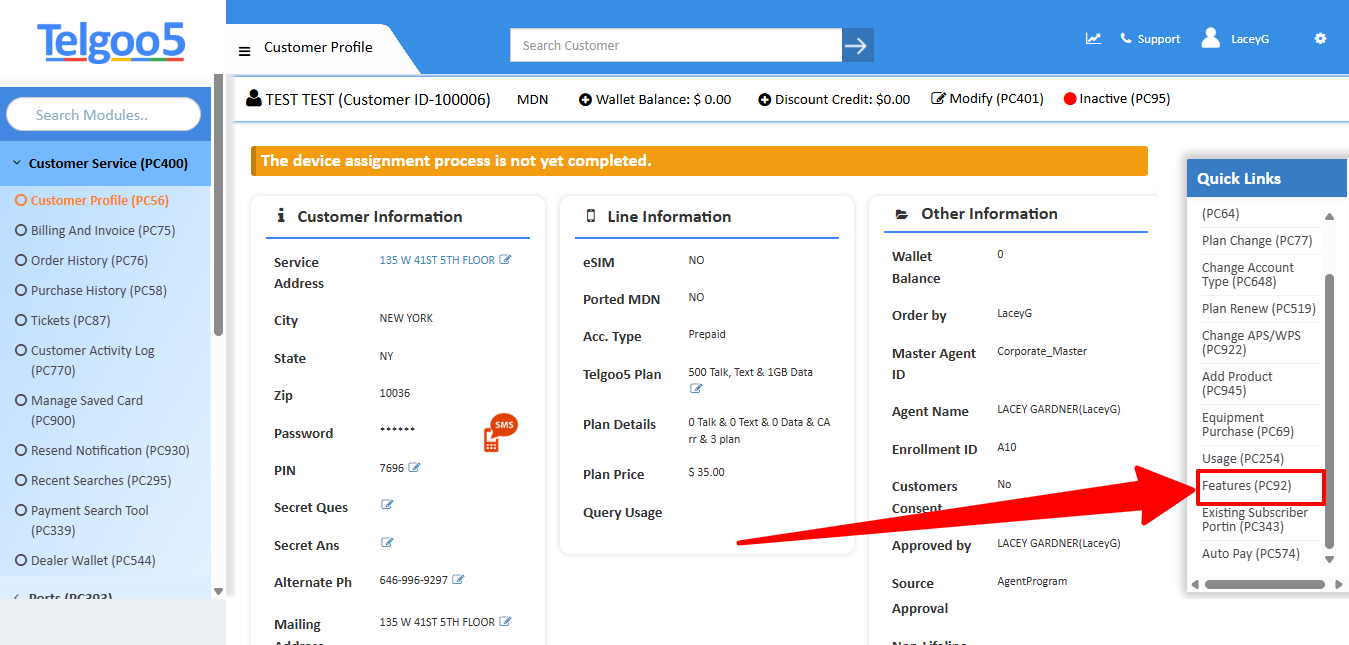

2. Verify WFC Feature: Navigate to Features (PC92) in the Quick Links.

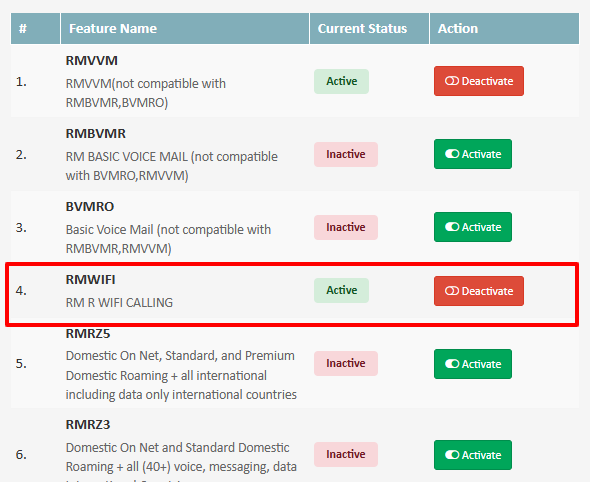

   • Search for the "Wi-Fi Calling" or "WFC" feature. Ensure it is toggled ON and saved. If the feature is missing, it may need to be added to the customer’s service plan configuration.

Phase 3: Carrier & Backend Escalation

If the feature is enabled in Telgoo5 and the device is configured correctly, there may be a provisioning mismatch at the carrier level.

1. HLR/IMS Provisioning: Wi-Fi Calling relies on the IMS (IP Multimedia Subsystem) layer. If the line is not correctly provisioned in the carrier's IMS database, WFC will not function regardless of the settings in Telgoo5.
2. Contact Carrier Support: Reach out to carrier support. Specifically ask them to:
   • "Check the IMS provisioning for this MDN."
   • "Verify if the E911 address is correctly associated with the Wi-Fi Calling profile."
3. Ticket Escalation: If carrier support confirms provisioning is correct, open a support ticket including:
   • The MDN (Mobile Directory Number).
   • The specific error message (e.g., "Unable to connect to server," "Error REG99," "Wi-Fi Calling activation failed").
   • Confirmation that the E911 address on file matches the customer's current location.

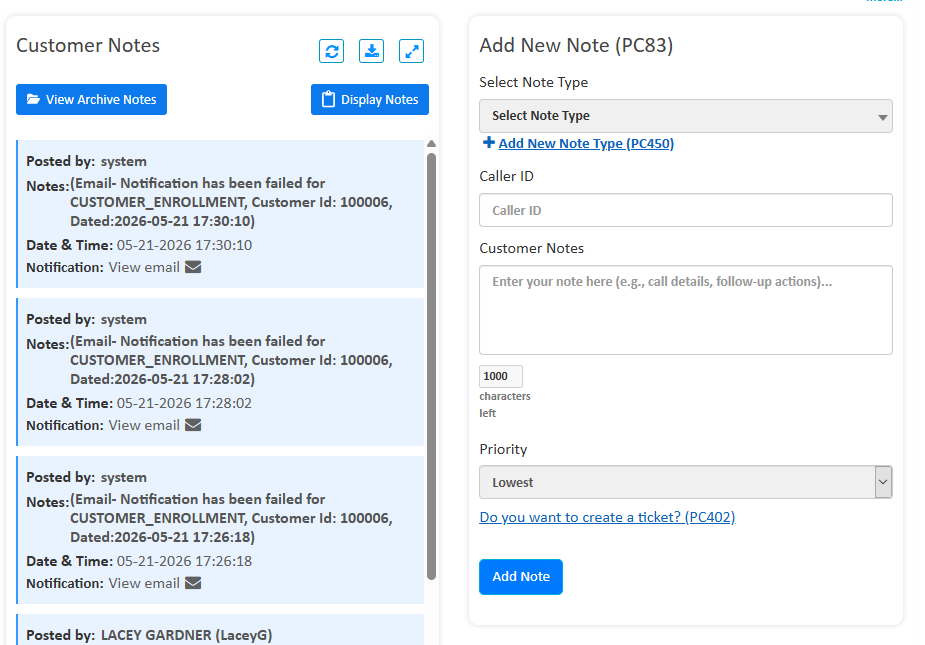

Pro-Tip: When documenting your troubleshooting in the Customer Notes (PC83), always state: "Verified WFC is toggled ON in Features (PC92), performed Network Reset, and confirmed E911 address is current." This confirms you have checked the most common failure points for Wi-Fi Calling and allows the backend team to skip these steps.
